OBD Engine Diagnostics Tool Code Readers Wireless Bluetooth Apple Iphone Android
WiFi Wireless OBD-II Car Diagnostics Tool For Apple OBD iPad iPhone iPod Touch
(See Details Below)
ELM327 HHOBD OBD2 EOBD Bluetooth Diagnostic Auto Scanner Reader Tool For Android
Works with PC, Apple or Android Devices
Works with PC or Android Devices
$24.99 ea.
$12.99 ea.
All-In-One OBD-II Car Diagnostics Tool
(Plug and Play. No Cell Phone or Computer Needed)
100% BRAND NEW & ORIGINAL!!!
The SuperScan CAN OBD II/EOBD Code Reader provides DIYers easy
and quick access to Diagnostic Trouble Codes and their definitions
on all OBD II compliant vehicles sold worldwide since 1996. Simply
plug it in via its standard 16-pin OBD-II connector at the first
sign of trouble and start diagnosing. No extra cell phone,
software or computer needed - Just plug and play!
Functions
- Work with all 1996 and later OBD II compliant US, European and
Asian vehicles
- Easily determine the cause of the Check Engine Light (MIL)
- Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1,
P3, and U1) codes, and pending codes
- Turn off Check Engine Light (MIL), clear codes and reset monitors
- Display DTC definitions on unit screen
- View freeze frame data
- Display monitor and I/M readiness status (emissions)
- Multilingual menu and DTC definitions - English, Spanish, French
and German, etc
- Retrieve vehicle information (VIN, CIN and CVN)
- Support CAN (Controller Area Network) and all other current OBD II
protocols
- Extremely easy to use and highly reliable
Specification
* Brand: Superscan
* Model: MS309
* Display: Backlit, 128 x 64 pixel display
* Operating Temperature: 0 ~ 60°C
* Storage Temperature: - 20 ~ 70°C
* Power: 8 ~ 18V provided via vehicle battery
* Dimensions: 113 x 68 x 16mm
* Color: Red
* Net Weight: 200g
* Package Weight: 245g
Perfect for
US vehicles from 1996, UK, European and Asian vehicles from 2001,
Diesels from 2004 on-wards with a compliant OBD-II.
Package
1 x Maxiscan MS309 OBDII Code Reader
1 x User Manual
$29.99

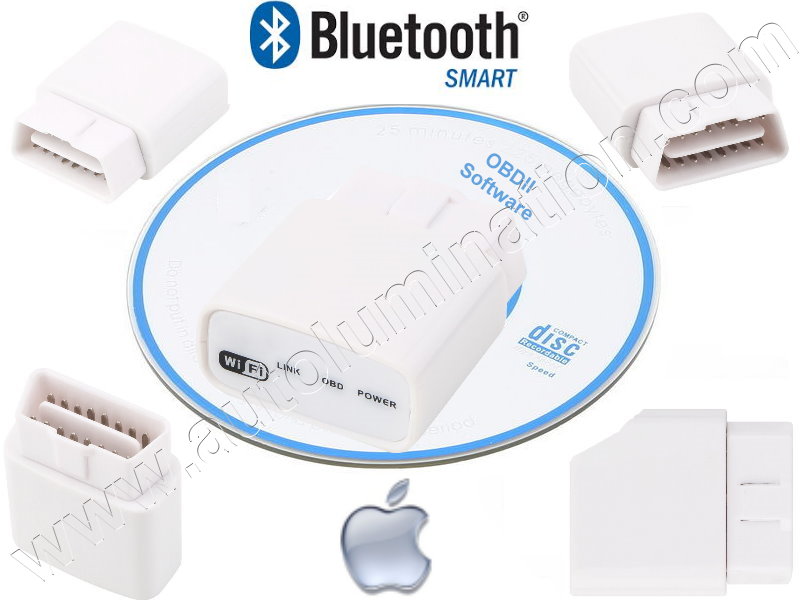

WiFi Wireless OBD-II Car Diagnostics Tool For Apple OBD iPad iPhone iPod Touch
WiFi Wireless OBD-II Car
Diagnostics Tool For Apple OBD iPad iPhone iPod Touch
100% BRAND NEW & ORIGINAL!!!
Free SOFTWARE!!!
Note, this item only supports wifi connection
of Iphone, Itouch Pod, ipad with IOS 4.3 or later and Android OS 2.3
or later. It doesn't support the App named iOBD2-BMW
and iOBD2-VW which are for other iOBD2 hardwares.
Will NOT work on 24V trucks.
Description
IOBD2 is an app for your car. It turns your Phone/Pad into an
advanced display for your engine data.
★ Now you do not need to drive on with the Check Engine light on.
★ Now you do not need to wait to go to the mechanic to overcharge
you to know what is wrong.
★ Now you can prepare the mechanic in advance by knowing what is
wrong with your car.
★ Now you can see what is wrong with your car on your holiday so
that you know if you can drive on.
★ Now you can know what your fuel consumption, torque acceleration
and other engine parameters are , all in real time.
★Please verify that your vehicle is OBD-II/EOBD compliant
before purchasing!
Get the benefit of multiple gauges without the
overwhelming clutter and the expense!
(Note: Not all OBD-II compliant vehicles will have support for all
of these parameters)
Supported OBDII protocols:
1.ISO15765-4 (CAN)
2.ISO14230-4 (KWP2000)
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM
Vehicle Compatibility
IOBD2 Wi-Fi works with all 1996 and & newer model year cars and
light trucks (OBDII & CAN)-domestic and import.
Supported device and APP
OS
Device
Mode
Apple iOS
(Require iOS4.3 or later)
IPod touch
iPod Touch 1st generation,2nd generation,3rd
genaretion,4th generation
iPhone
iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone
5
iPad
iPad, iPad 2,ipad 3,iPad Mini
Android
(Require OS2.3 or later )
All android smart phone and tablet
WI-FI
Connection
IIOBD2 can be connected with all devices based on Apple iOS and
Android OS with WI-FI. It is very reliable.
Functions:
1.Read diagnostic trouble codes, both generic and
manufacturer-specific, and display their meaning (over 3000 generic
code definitions in the database).
2.Clear trouble codes and turn off the MIL (\"Check Engine\" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value -- Indicates a percentage
of peak available torque. Reaches 100% at wide open throttle at any
altitude or RPM for both naturally aspirated and boosted engines.
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim (Rich/Lean)
10.Long Term Fuel Trim (Rich/Lean)
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Operating specification
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Weight: 80g/ 2.83oz.p>
Operating Voltage: 8-19V DC
OpOperating Temperature: -15- to 100
WIFI signal name: iOBD2
Technical Specifications
SSID: V-nK
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
PoPower Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Plastic: Automotive Grade
Package Includediv>
HaHardware:1 X ELM327 Wireless Scanner
Software: 1 X Driver CD
Vehicle Coverage
Does My Car Have OBD-II?
All cars and light trucks built and sold in the United
States after January 1, 1996 were required to be OBD II
equipped. In general, this means all 1996 model year cars
and light trucks are compliant, even if built in late 1995.
Two factors will show if your vehicle is
definitely OBD II equipped:
1) There will be an OBD II connector located under or
around the dashboard, and

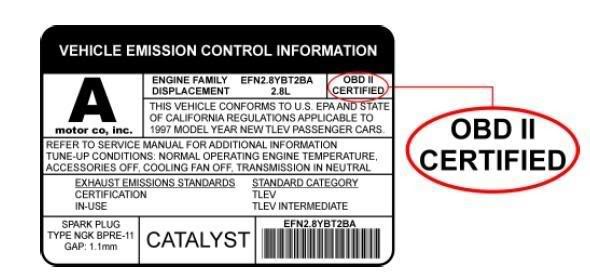

2) There will be a note on a sticker or nameplate under the
hood: "OBD II compliant".
Where is the connector located?
The connector must be located within three feet of the
driver and must not require any tools to be revealed. Look
under the dash and behind ashtrays.
The Three Flavors of OBD II
While the parameters, or readings, required by OBD II
regulations are uniform, the auto manufacturers had some
latitude in the communications protocol they used to
transmit those readings to scanners. Naturally, each felt
they had the one true way, so we have three different OBD II
communications protocols in use.
What Communications Protocol does my vehicle use?
As a rule of thumb, GM cars and light trucks use SAE
J1850 VPW (Variable Pulse Width Modulation). Chrysler
products and all European and most Asian imports use ISO
9141 circuitry. Fords use SAE J1850 PWM (Pulse Width
Modulation) communication patterns.
There are some variations among captive imports such as the
Cadillac Catera, a German Opel derivative, which uses the
European ISO 9141 protocol.

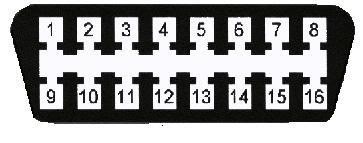

On 1996 and later vehicles, you can tell which
protocol is used by examining the OBD II connector:
J1850 VPW--The connector should have metallic contacts in
pins 2, 4, 5, and 16, but not 10.
ISO 9141-2--The connector should have metallic contacts in
pins 4, 5, 7, 15, and 16.
J1850 PWM--The connector should have metallic contacts in
pins 2, 4, 5, 10, and 16.
|
|
|
